Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing

Name: Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing
Brand: BOTO
Price: 1 USD

Quality Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing for sale

Brand Name : BOTO

Model Number : BT-E708-1000

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Sets per Month

Delivery Time : 5-25 days

Packaging Details : wooden case

Cooling Speed (+150℃~-20℃) : 5℃/min, non-linear control (without loading)

Heating Speed (-20℃~+150℃) : 5℃/min, non-linear control (without loading)

Compressor : Germany Bock

Expansion System : electronic expansion valve

Refrigerant : R404A, R23

Internal Dimension (W*D*H) : 1000*800*1000mm

External Dimension (W*D*H) : 1580*1700*2260mm

Working Capacity : 800 liter

Material of Internal Chamber : SUS#304 stainless steel, mirror finished

Material of External Chamber : stainless steel with paint spray

Temperature Range : -20℃~+120℃

Temperature Fluctuation : ±1℃

Heating Rate : 5℃/min

Cooling Rate : 5℃/min

Sample Tray : SUS#304 stainless steel, 3pcs

Testing Hole : diameter 50mm, for cable routing

Power : three-phase, 380V/50Hz

Safety Protection Device : leakage over-temperature compressor over-voltage and overload heater short circuit

Contact Now

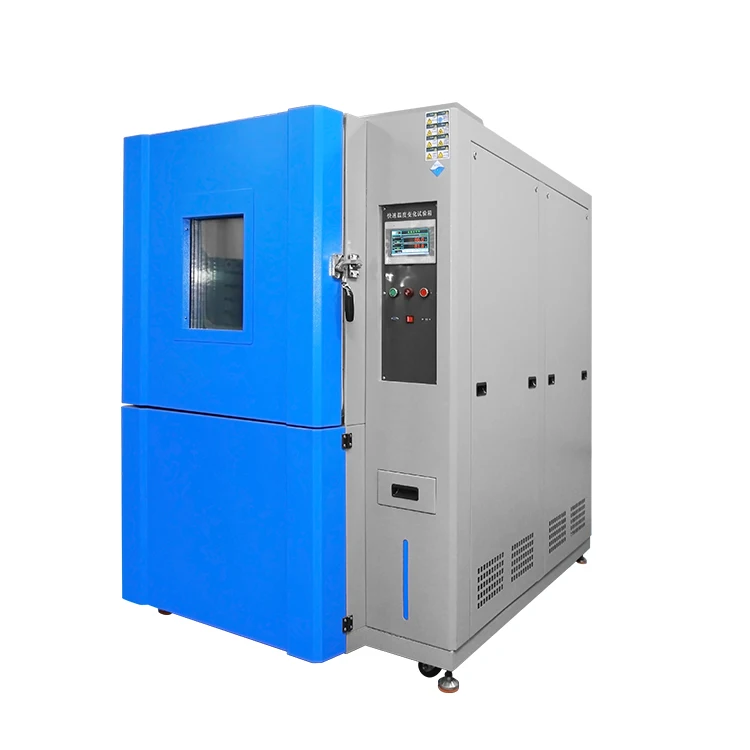

Thermal Cycle Shock Rapid Temperature Change Test Chamber

Products Description

Thermal Cycle Shock Rapid Temperature Change Test Chamber is ideally suited for specimen test requiring quick changes of temperature. It can evaluate the failure of thermal mechanical properties of product. Normally, the temperature rate is less than 20℃/min, which can achieve the real application environment of testing sample by the fast ramp rate.

APPLICATION

1. To simulate test environment with different temperature and humidity.

2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, and drying test.

DESIGN FEATURES OF THE CHAMBER

1. It has cable ports are provided on the left side to allow easy wiring of specimens for measurement or voltage application.

2. The door equipped with hingespreventing auto-closing.

3. It can designed to comply with major environmental test standards like IEC, JEDEC, SAE and etc.

4. This chamber is safety tested with CE certificate.

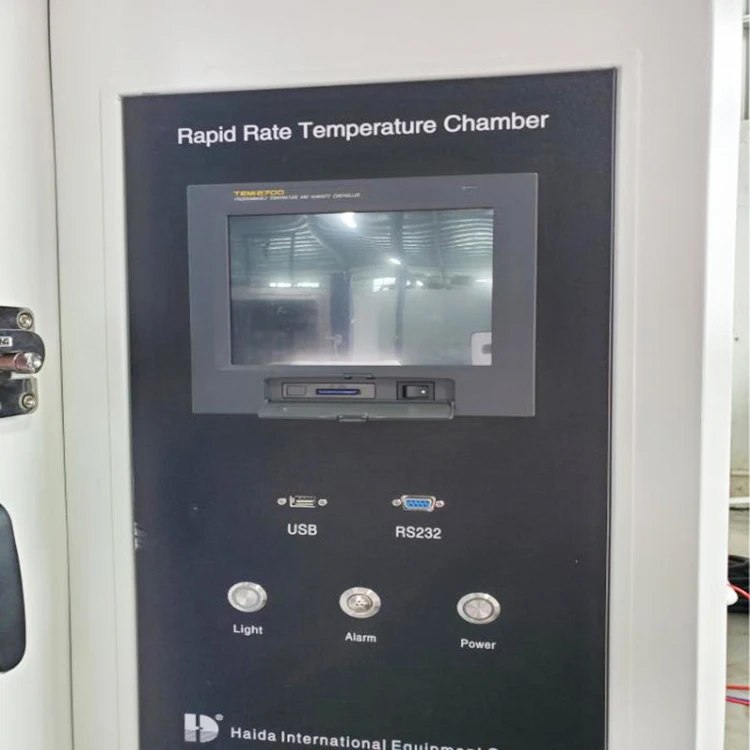

PROGRAMMABLE CONTROLLER

1. It adopts high-precision programmable touch screen controller for easy and stable operation.

2. Step types includes ramp, soak, jump, auto-start, and end.

TEST STANDARD

IEC60068-2-14 and etc.
TEMPERATURE RAMP SYSTEM (HEATING & COOLING)

Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing

Item		Specification
Cooling Speed (+150℃~-20℃)		5℃/min, non-linear control (without loading)
Heating Speed (-20℃~+150℃)		5℃/min, non-linear control (without loading)
Refrigeration Unit	System	air-cooled
	Compressor	Germany Bock
	Expansion System	electronic expansion valve
	Refrigerant	R404A, R23

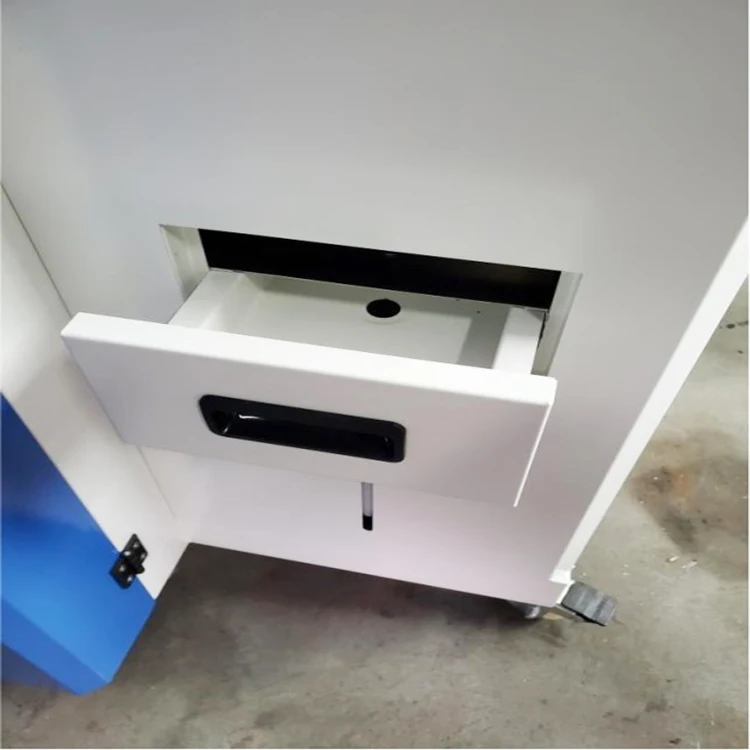

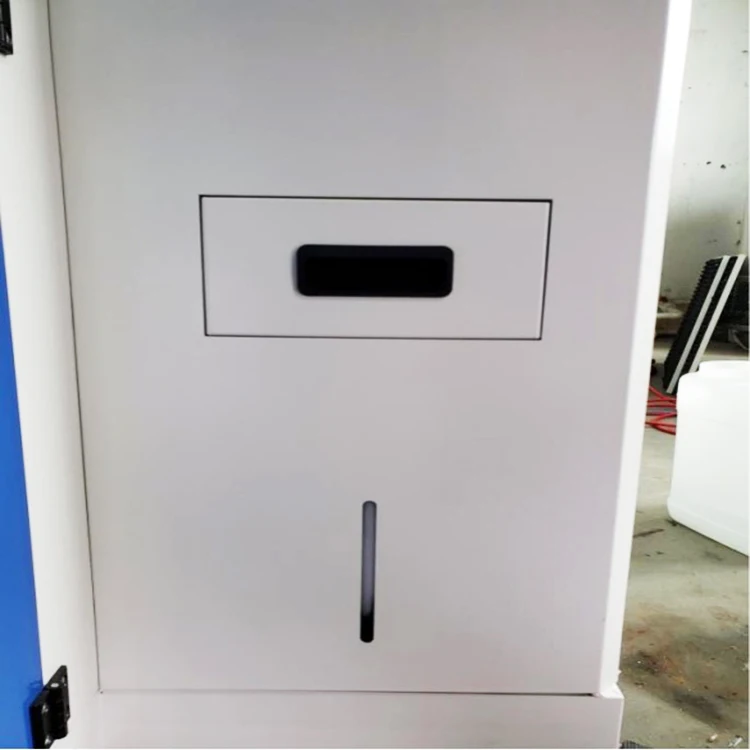

Details Images

Product Paramenters

Item	Specification
Internal Dimension (WDH)	10008001000mm
External Dimension (WDH)	158017002260mm
Working Capacity	800 liter
Material of Internal Chamber	SUS#304 stainless steel, mirror finished
Material of External Chamber	stainless steel with paint spray
Temperature Range	-20℃~+120℃
Temperature Fluctuation	±1℃
Heating Rate	5℃/min
Cooling Rate	5℃/min
Sample Tray	SUS#304 stainless steel, 3pcs
Testing Hole	diameter 50mm, for cable routing
Power	three-phase, 380V/50Hz
Safety Protection Device	leakage over-temperature compressor over-voltage and overload heater short circuit
